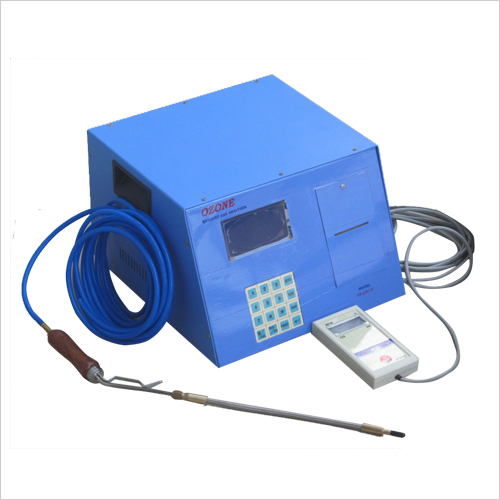

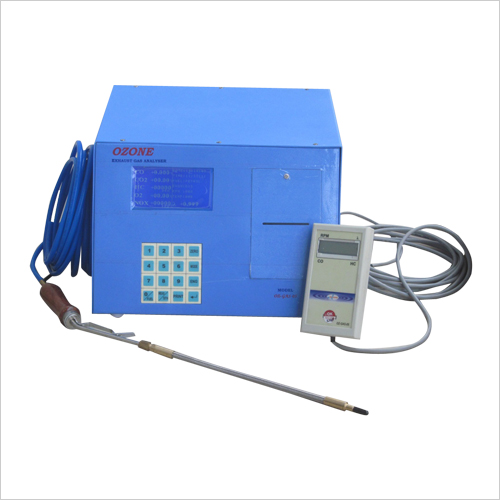

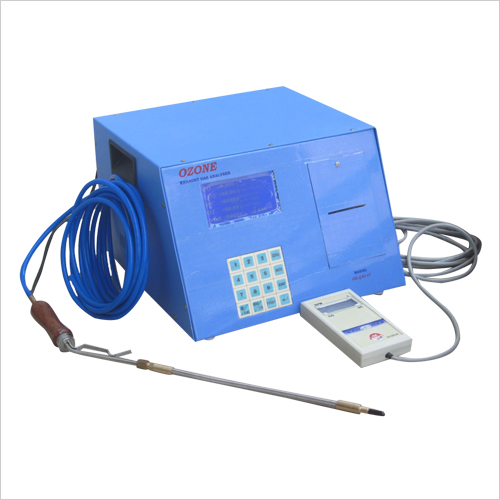

Exhaust Four Gas analyzer

Salient features of 5 Gas analyzer Model (OZ-GAS-05)
Principal operation: Non Dispersive Infra Red (NDIR)
O2 and NOX – Electro Chemical Server
Gas Measured
Carbon Monoxide CO
Carbon Dioxide CO2
Hydrocarbon HC
Oxygen O2
AFR (Lambda) ?
Nitrogen Oxide (NOX) Optional
Range
CO 0………15% Vol
CO2 0……..20% Vol.
HC 0…….30000 PPM (Hexane)
0…….60000 PPM (Propane)
NOx 0…….5000 PPM
O2 0…….25% Vol
Resolution
CO 0.001%
CO2 0.01%
HC 1 PPM
NOx 1PPM
O2 0.01%
RPM (Optional)
Inductive Pickup 0……..9999rpm…
Battery tachometer 400…..9999rpm
Hand Held Remote with display of HC, CO, ?, Rpm & Timer
Key Board Membrane Switches for long durability
RS 232 Port Inbuilt for Immediate Connectivity to computer for Computerized Pollution Checking Centres
Power Supply In-built-Wide range to counter Fluctuation.i.e 86-264V AC & 11-25V DC (Battery)
Dimensions 344 X 368 X 223 mm (L, W, H)
Weight 7.5 Kgs Approx
Accessories Sampling Probe & Tube, Cable for computerisation, Power and Battery Cord
Approval Conforms to the Latest Norms laid by MORTH Approved by ARAI

Enquiry Now


The Most unique feature on OZ-GAS-05

Hand held remote control-the most unique system of its kind for a Gas analyzer in India.

The remote has the following features to intercept the gas analyzer without being close to the equipment with a cable length of 5 mts.

The remote can be used for displaying of the following purposes:

RPM- High and low values (need not see the equipment and PC)

CO Values (do)
HC Values (do)
? Values (do)
Rpm Values (do)

Timer- A feature introduced by the Delhi Transport dept to read the High and low idle on Bharat stage II and above vehicles Lambda, which are being analyzed by the High Court and Burelal Committee. (European Norms)

The purpose of a hand held remote was designed for a one-man operation wherein the equipment can be governed through the basic keys given on the remote namely,

  1. Zero
  2. Standby
  3. Print

The following keys are essential once the equipment is switched on and ready for testing and then with the use of the remote all the other operations required for testing a vehicle can be adhered.

This unique feature of having a hand held remote is available only on OZ-GAS-05 and is also interlinked with our custom OZONE software for computerization.
